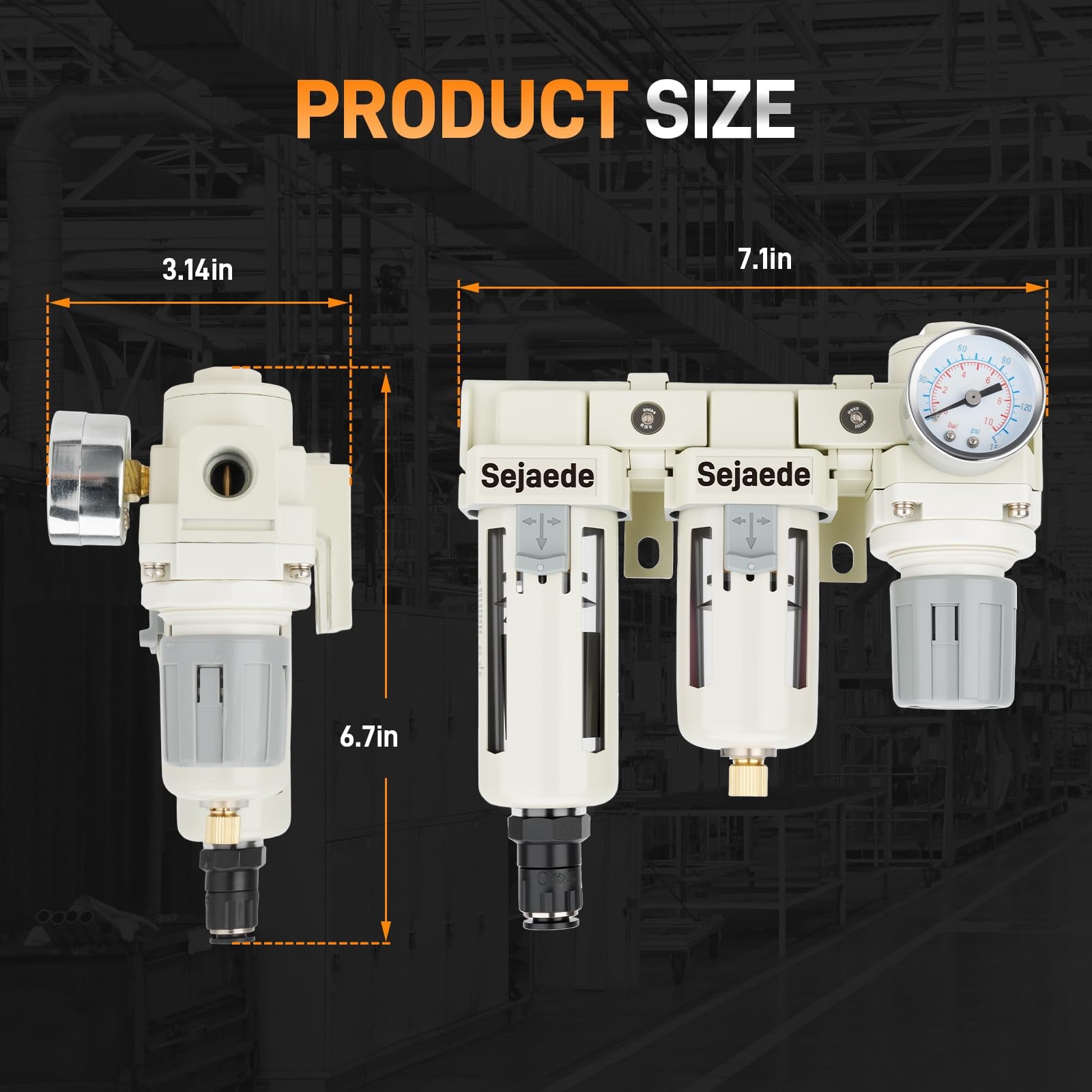

3/8" NPT Air Compressor Filter Regulator 2-Stage Auto & Semi-Auto Drain Dryer

Product Description

About this item
Wide Range of Applications:
Our air compressor filter dryer effectively and efficiently adsorbs and filters impurities and moisture from the air to ensure a dry and stable airflow supply. It is widely suitable for various pneumatic equipment that requires dry air, such as air compressors, cylinders, spray painting equipment, and more

Package Includes:
1x 3-in-1 Filter with Combined Auto/Semi-Auto Drain and a Pressure Regulator Equipped with Gauge, 1x PTFE Tape (Wrap It Several Times Around the Connection Point to Ensure Airtightness), 2x 3/8" NPT Fitting , 2x 3/8" NPT Quick Connector

Technical Specifications:
Maximum Pressure: 1.0Mpa (10.2kgf/cm²) (145psi), Ambient and Fluid Temperature: 5～60℃ (41～140℉), Recommended Oil: ISOVG32, Recommended Regulation Range: 0～0.85Mpa (0～8.67kgf/cm²) (0～123.28psi), Rated Flow Rate: 70.63 SCFM (2000L/min), Valve Type: Relieving Type

Excellent Performance:
Our compressed air filter dryer is constructed from high-quality polycarbonate and a double-layer 5μm brass filter element. It features excellent resistance to high temperature and pressure, corrosion, impact, as well as flame retardancy and aging resistance. As well as superior filtration performance. It boasts a long service life and can be reused

Note:
To use the pressure regulator, simply lift the gray knob upward to adjust the pressure. After setting to the desired pressure, press the knob downward to lock it, maintaining a stable outlet pressure for precise airflow control. To ensure an airtight seal, wrap the sealing PTFE tape several more rounds around the threads of the connector/fitting. If you have any issues, please contact us

Package Includes:
3-in-1 Filter, PTFE Tape, 2x 3/8" NPT Fitting, 2x 3/8" NPT Quick Connector



Note: 1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need. 2.Please allow 1-10mm deviation due to manual measurement. 3.Due to light and screen difference, the item's color may be slightly different from the pictures. 4.make sure that the size and shape of the product matches your car. 5.No installation guides are included, we highly recommend to seek professional installation. Any damage during installation will not be refunded.
